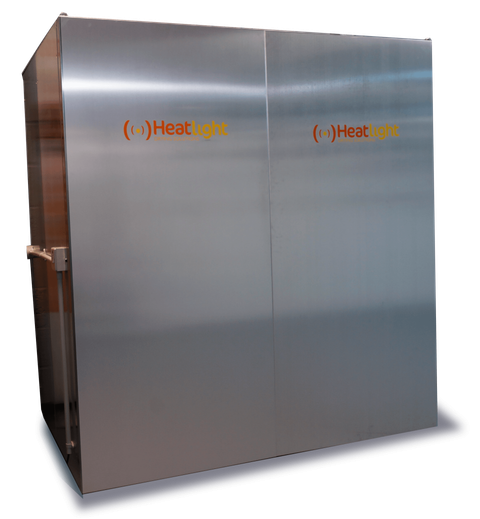

Fast Bake Drying & Curing Oven
The fast bake oven uses infrared technology to provide a fast & efficient solution for drying & curing coatings on wood and metal products.
Waiting for paint, varnishes and other finishes to dry slows down the manufacturing process, especially if products that need to be sprayed must wait for other items to dry first.
The Fast Bake Oven means that the drying cabinet can be located away from the spraying or painting area. This allows for your production line to continue.
As infrared dries coatings faster than conventional methods, a better more consistent finish can be achieved.
Victory has a long history of developing infrared products for a variety of industries, including automotive and plastics. This new system now draws on this experience to offer a much-needed solution for fast, efficient drying of finishes on wood & metal products such as doors, panels and window frames with minimal risk of contamination by dust.
Controllable Heat
- Fast drying time
- Instant heat - no warm up time
- Mobile racking easily moved in and out of the oven
Typical Manufacturing Applications
- Manufacturers of kitchen cupboards
- Door manufacturers
- Window frame manufacturers
- Painted component manufacturers
- Wooden furniture manufacturers
Reduce drying time from hours to minutes
Waiting for paint, varnishes and other finishes to dry slows down the manufacturing process, especially if products that need to be sprayed must wait for other items to dry first. The Victory system means that the drying cabinet can be located away from the spraying or painting area. The mobile racking can be loaded with product and simply wheeled away, into the drying cabinet. The system can be customised to suit customers’ requirements.
Standard FBO Range
| Code | Width (mm) | Depth (mm) | Height (mm) | Watts (W) |
|---|---|---|---|---|
| FBO1 | 1650 | 1100 | 2000 | 4 x 1500 |
| FBO2 | 2200 | 1100 | 2000 | 4 x 1500 |
Voltage: 220-240V ~ 50-60Hz
Depending on your requirements, the wiring of the four cassettes can be designed for your needs.
Supplied in a flat pack format with easy-to-follow assembly instructions, each Fast Bake Oven is supplied with 4 x 1500W heater cassettes – each mountable in three standard height positions for your own unique application.
The cassettes are fully dimmable, allowing you the flexibility to control your heat requirements for individual jobs.
The Fast Bake Oven is not supplied with any controllers as standard due to the many variable customer needs. Optional controllers are available. Please call or email us to discuss your requirements.
Looking For A Smaller And More Portable Alternative? The VLP15 Paint Dryer Is Ideal
The VLP15 is a stand mounted paint dryer. It is fitted with three Victory Lighting gold lamps, each one producing 500 Watts.
A Hi-Light reflector behind the lamps helps to direct the infrared waves towards the substrate.
Flexible, efficient drying
- Fitted with 3 x 500W short wave Gold lamps
- Wide angle Hi-Light reflector
- 3m of flexible cable
- Built-in isolating switch
- Optional (6ft) chrome plated stand
- Full height slide & lock heater bracket
- R7s lamps for easy lamp change
