Quartz Infrared Modules


Victory IR quartz medium wave modules provide an efficient heat source for a variety of industrial processes, primarily those that entail thermoforming of plastics. The infrared elements built into quartz panels rapidly provide an even, controlled, heat source.

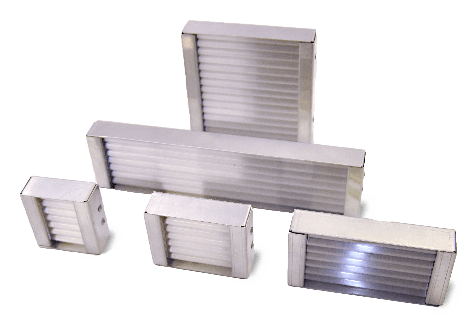

Victory Quartz Modules

The Victory infrared quartz medium wave module range comprises five modules to suit different fitments, and spans wattages from 150–1250W. There is thus a module to suit a wide range of industrial applications. However if you do not find the product you need in this datasheet, Victory’s technical team will be happy to discuss your exact requirement.

A Rapid Effective Heat Source

  • .Fast response heat up and cool down
  • Ideal for fast cycling machines
  • Even heat distribution
  • Highly reflective aluminised internal surface
  • High radiant efficieny
  • Low conventional losses
  • Five standard ranges
  • Large choice of power ratings
  • Can be manufactured to suit most supply voltages

A Rapid Effective Heat Source

  • Thermoforming plastics
  • Composite bonding
  • Comfort heating
  • Industrial processing

Wattage Range

800 1000 1250 Watts 150 200 250 300 375 400 500 600 650 750
HSQ X X X X X X
X FSQ X X X X X X X X
X SQE X X X X
X X X LQE X
QSQ X X

Specifications


Voltages:

110-120V

220-240V

480V


These wattages are common configurations, others are available upon request.  Please contact us if you need a wattage that is not shown
