Modular Heat Tech Unit

Modular Heat Tech For Industrial IR Processing Including Composite Bonding.

Infrared technology cannot be beaten when it comes to providing a bespoke solution for additional heat source.

Victory offers a modular system to help get heat to your specific area fast and efficiently.

Our standard 14kW Modular Strap assembly allows a large heating area for a variety of applications with an array of 14 x 1.0kW short wave quartz lamps mounted with reflectors onto the modular strap framework. It provides a fast, efficient, convenient and bespoke heat source.


The Modular Strap allows for your own bespoke application where the straps can be assembled in a variety of configurations to suit your specific need with any number of lamps arranged to suit the application.


The lamps would be wired into one or more terminal boxes into which your mains power would be connected via your own control system, whether that be a timer or dimmer controller.


Victory supply a suitable Timer controller capable of controlling up to 14kW which is suitable for most needs.

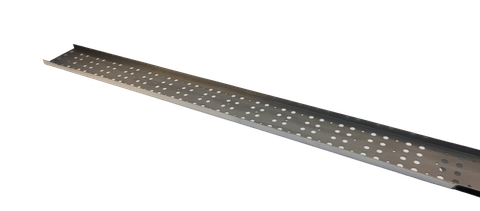

Modular Strap
IRZ1000 Lamp Reflector

Typical Applications & Features


  • Suitable for paint drying large paint areas such as on buses, rail carriages etc
  • Drying stainless cabinets after washing

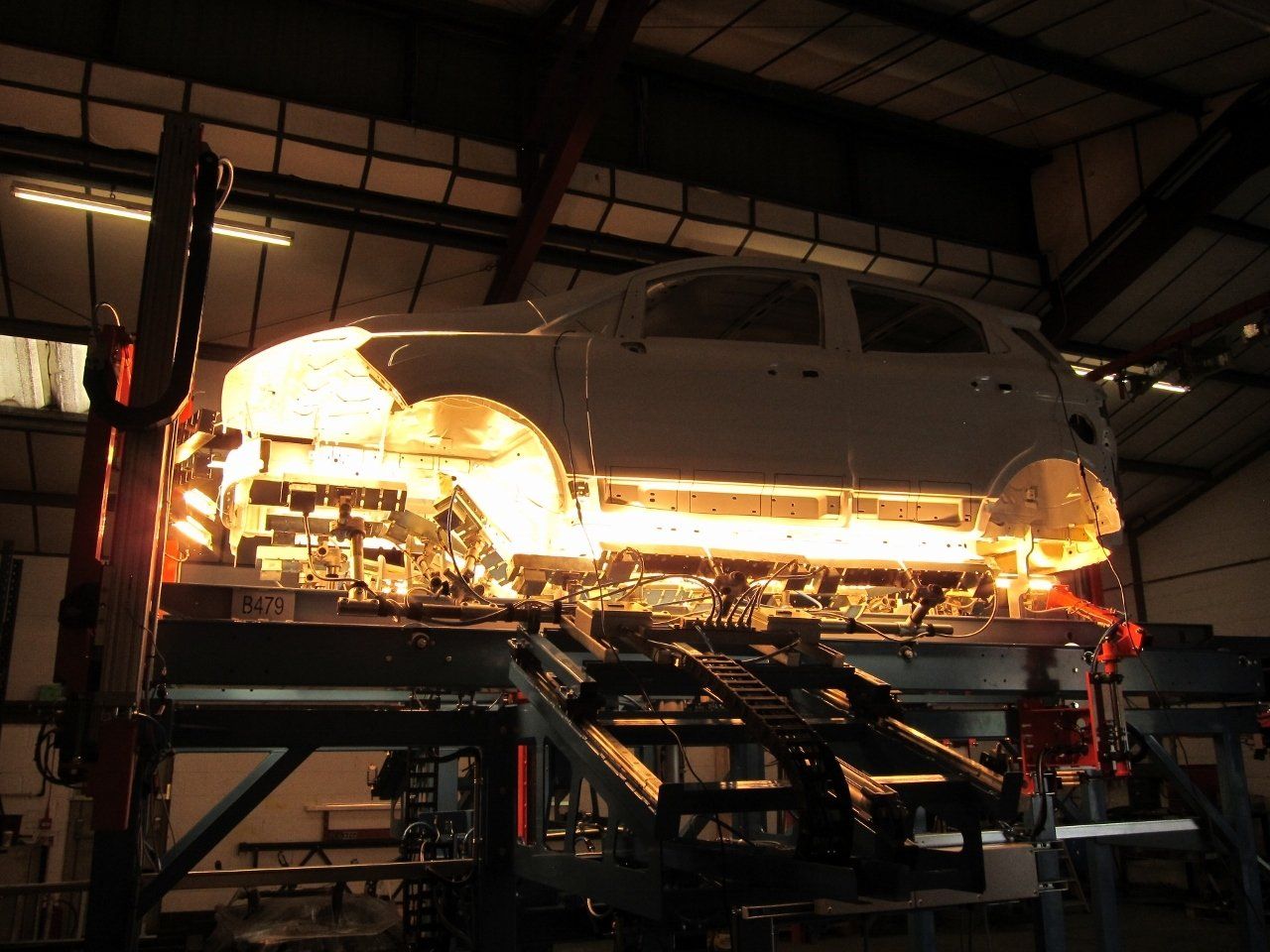

  • Composite bonding
  • Curing laquer on engineering production lines
  • Lamp life 5000 hours


Modular Heat Tech

Standard Unit

Although our standard unit is shown below, this system can also be configured and made to your own specific requirement with size & arrangement and number of lamps to suit your application.

Product Code Lamp Total Watts Volts Fitting Finish
HT14 Reflector 14000 415-3 Phase Galvanised
