Infrared Paint Dryer & Curing Systems

Victory’s Heatlight range of infrared drying & curing systems has models for both large & small jobs.

Ideally suited for car body repair shops, there is a model for vehicles of multiple sizes.

Our infrared drying systems are also suitable for non vechicle applications including drying & curing finishes on woods & metals.

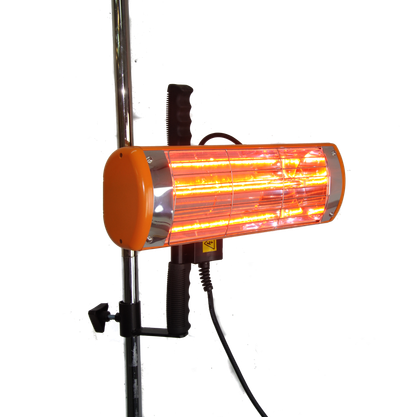

Victory Lighting VLP10 Small Paint Dryer

VLP10

Victory's Heatlight range of automotive paint dyers has many options for both large and small jobs. The VLP10 combines the flexibility of a hand held paint dryer with the benefits of a free standing heater
Button

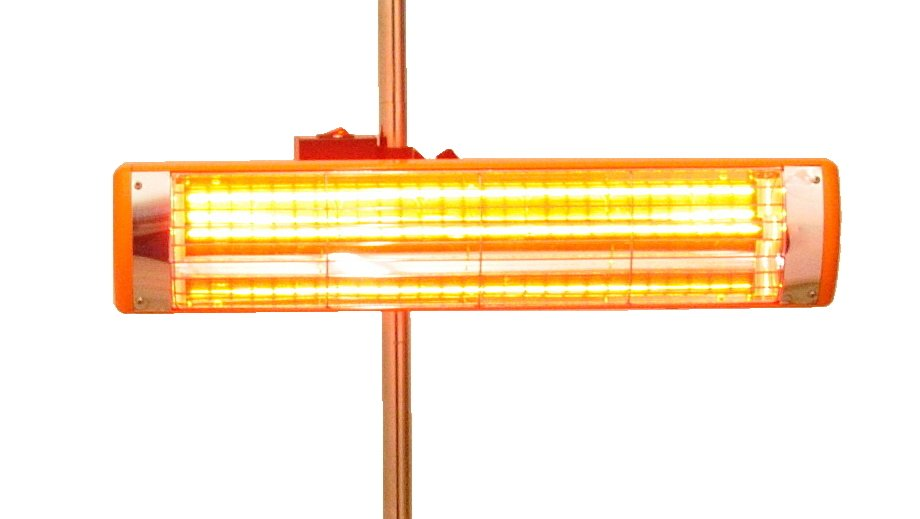

VLPX10

The VLPX10 is a longer model with a 1kW, single-lamp, stand-mountable unit which compliments any existing full size drying system. It is ideal for drying sills, bumpers, lower areas of the vehicle and any number of other small jobs — either with or without the optional Victory lightweight stand.
Button
VLP15

The VLP15 is a three-lamp stand-mounted automotive paint dryer, perfect for small repairs, or as an additional heat source or spot drying unit to complement larger systems. Lowered on its stand, it is ideal for drying hard-to-reach areas such as sills, bumpers and lower areas of the vehicle.
Button

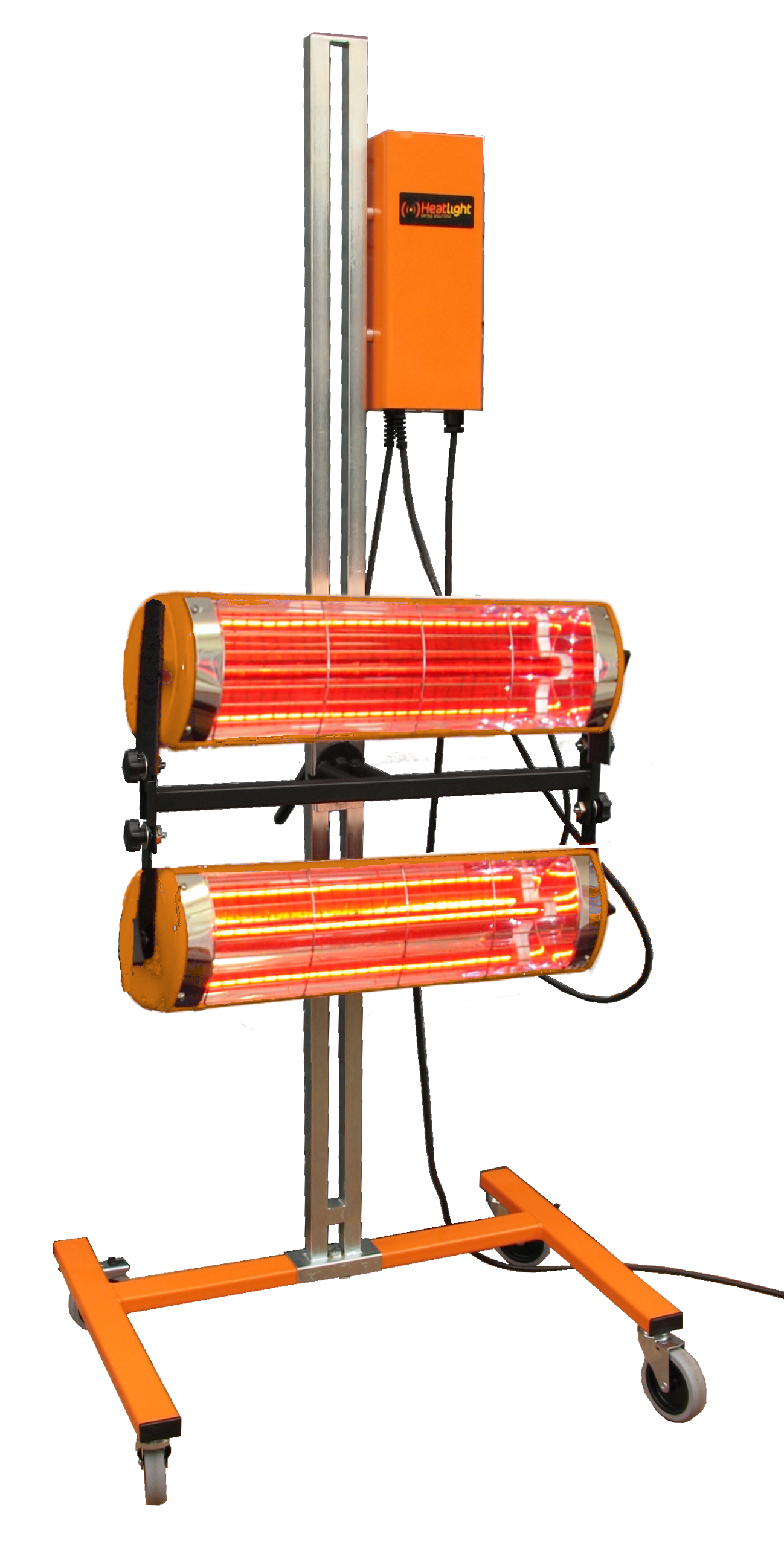

VLP20M

The VLP20M is an infrared dryer for use on smaller repairs. Extremely mobile and flexible, it allows each cassette to be adjusted and locked into position. Height adjustment is made using the lockable sliding mechanism.
Button

Large Paint Dryers

Victory’s Heatlight range of large paint dryers utilises 1 & 1.5kW glare control lamps, configured in individual cassettes to yield up to 6kW of drying heat.

The lamps emit short wave infrared heat which is ideal for optimising drying of water-based paints.

These flexible systems allow each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage.

There are also options for temperature/distance sensors for ultimate controllability.

Efficiency

The reflectors in Victory dryers have been carefully designed to maximise efficiency and evenly distribute heat over the widest possible target.

A unique feature of the Victory system is that each cassette can be profiled to the curves of the target. The Heatlight system thus delivers incredibly efficient heating with the best possible paint finish.

For the ultimate flexibility and efficiency, the VLPV30 has two cassettes that can be independently rotated to achieve many different drying configurations.

Fit For The Job

XL for larger vehicles

Modern vehicles, particularly SUVs, are increasingly tall. The Heatlight range therefore includes ‘XL’ versions which have extended reach and height.

Tried and tested over years and 1000s of installations
Designed and engineered in the UK with longevity in mind
Manufactured from top quality steel and aluminium
Full warranty and easy to access spares
Low glare lamps for eye safety in the workplace
Lockable rear wheel castors

Wide wheels to roll over gratings
Individually switched cassettes giving great
drying flexibility
Horizontal or vertical cassette operation
Long lamp life of up to 20,000 hours
Locking gas strut to fix arm height
Reduced energy consumption; no fans or filter changes

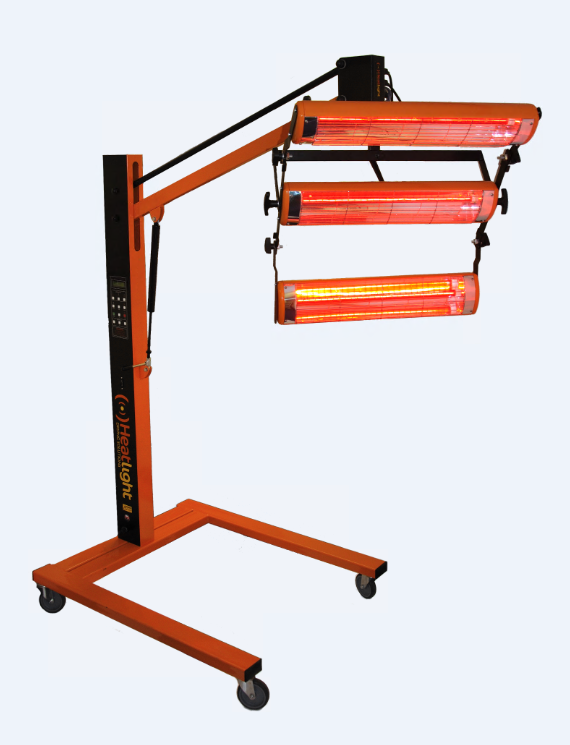

VLP30 3000W

A very flexible and durable system. It can be used in multiple positions thanks to a moveable head and adjustable cassette positions.
Button

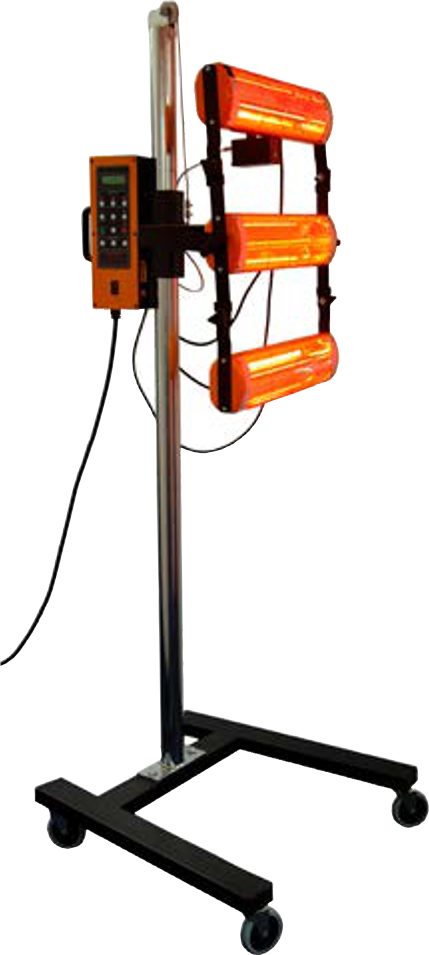

VLP30SL 3000W

800x1000mm drying area

A slimline design means easy mobility and extreme manoeuvrability. Three 1000W cassettes can be tilted and positioned to fit corners and curves.
Button

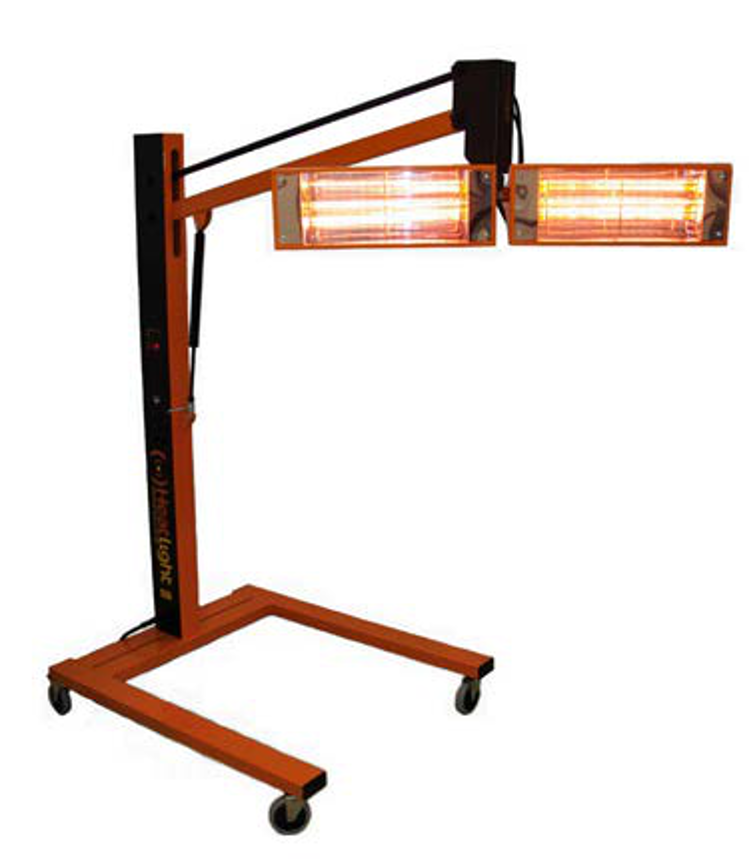

VLPV30 3000W

Variable drying area

A very versatile system, with two 1500W independently manoeuvrable cassettes that enable drying area to be varied.
Button

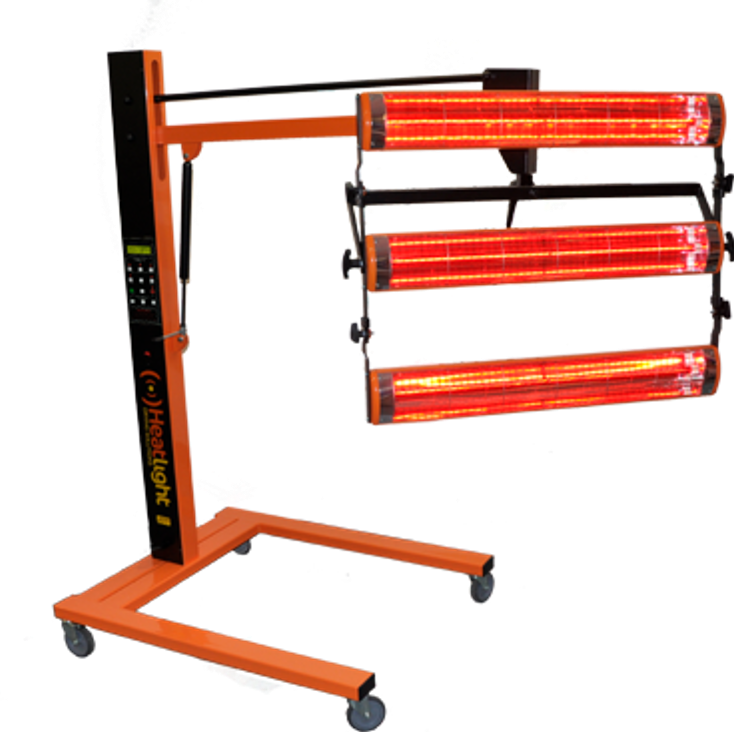

VLP45 4500W

1250x1000mm drying area

A superbly configured system which has proved hugely popular due to its unique cassette length that enables an extra wide drying area.
Button
VLP60 6000W

2000x1000mm drying area

This system gives superb performance and a huge drying area of 2000mm x 1000mm
