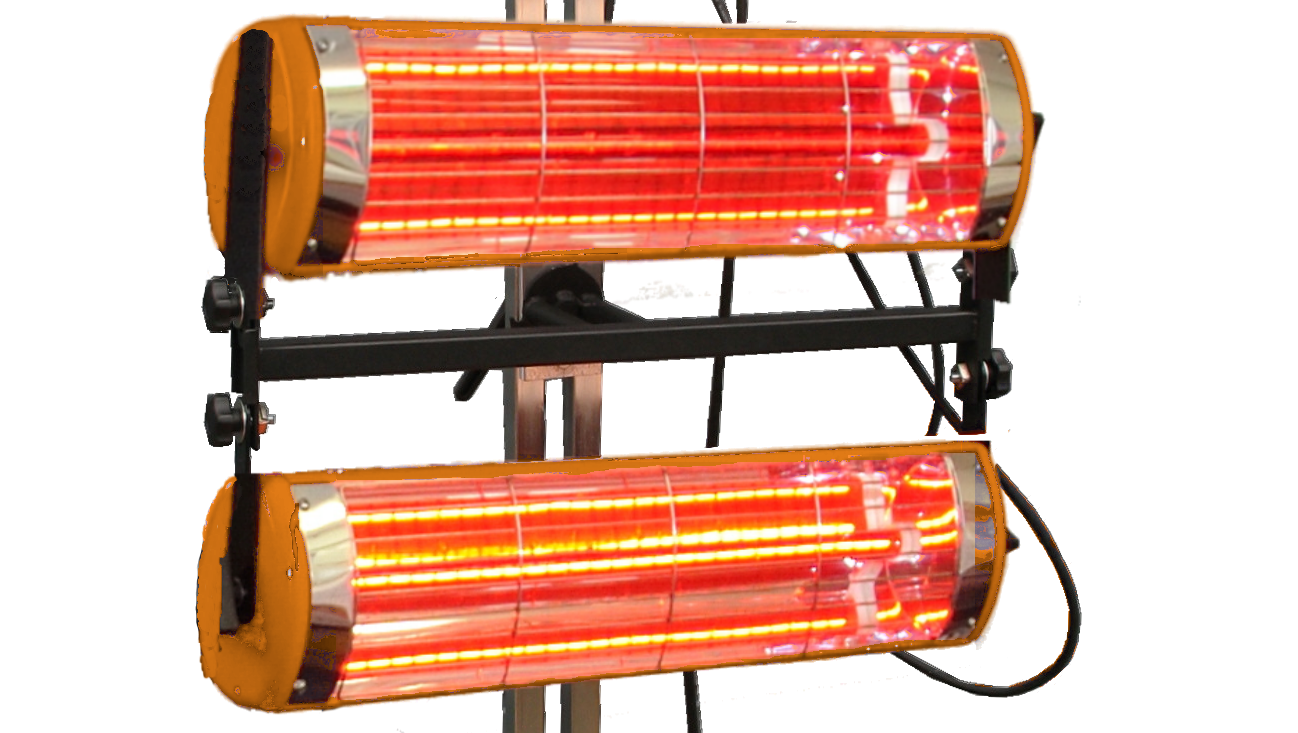

VLP20M Infrared Paint Dryer


Victory’s Heatlight range of automotive paint dryers & curing systems has many options for both large & small jobs. The VLP20M is an infrared dryer for use on smaller repairs.



Extremely mobile and flexible, it allows each cassette to be adjusted and locked into position. Height adjustment is made using the lockable sliding mechanism

VLP20M Infrared Paint Dryer

The Features Of Larger Systems - For Smaller Jobs

  • 1kW high output Glare Control short wave tubes fitted to each cassette
  • Long lamp life with an average of 6000 hours (typically 4-5 years continous professional use
  • Electronic power and time control
  • Robust steel construction stable frame, with rear wheel locking castors
  • Maintenance free cassettes with no fan or filter changes
  • Individually switched cassettes
  • Horizontal or vertical cassette operation
Victory Lighting VLP20M Small Paint Dryer Controls & Stand

This flexible system allows each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage.


The drying cycle has all the features of larger systems with flash and bake controls both for temperature and time, automatically switching from flash to bake.

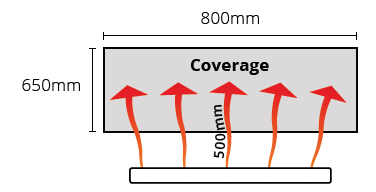

Victory Lighting VLP20M Small Paint Dryer Coverage Area
Code Item Watts
VLP20M Cassette complete with controller and stand 2000
Supplied with 2 x 1000W lamps & cable

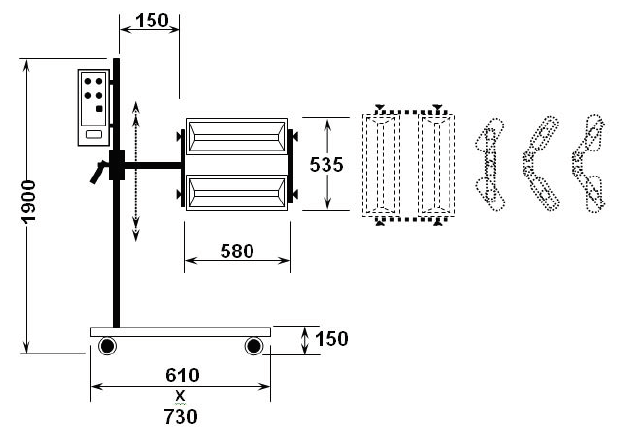

Victory Lighting VLP20M Small Paint Dryer Dimensions

Applications

  • Spot drying
  • Engine drying
  • Strip removal
  • Filler drying
  • Stone chip repairs
  • Preheating prior to spraying
