VLPV30 3000W Infrared Paint Dryer


A very versatile system, with two 1500W independently manoeuvrable cassettes that enable drying area to be varied. Each can be rotated 270° and they are mounted on an arm which can rotate 180°, so many different configurations can be achieved.

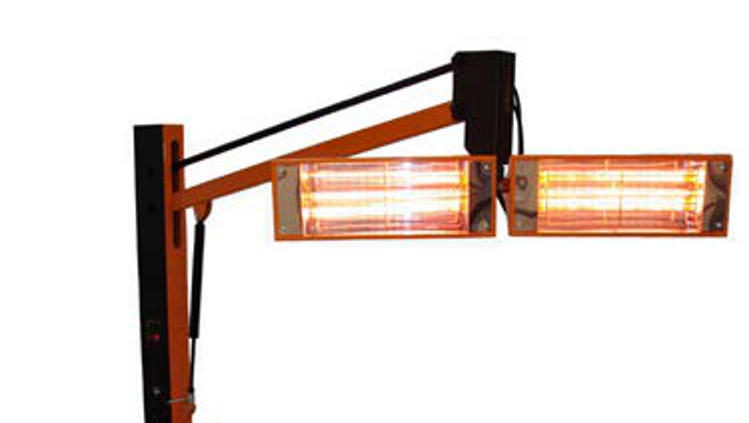

Victory Lighting VLPV30 Large Paint Dryer

Victory’s Heatlight range of large paint dryers utilises 1 & 1.5kW glare control lamps, configured in individual cassettes to yield up to 6kW of drying heat. The lamps emit short wave infrared heat which is ideal for optimising drying of water-based paints. These flexible systems allow each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage. There are also options for temperature/distance sensors for ultimate controllability.New Paragraph

Fast and efficient


Victory Heatlight large paint dryers use short wave infrared — the most environmentally efficient form of energy for paint drying.


Efficiency increases of up to 90% are made over conventional systems and drying times are cut typically from 45 to 10 minutes. Faster throughput and lower energy costs give a rapid return on investment.


Victory short wave lamps are specifically tuned for paint drying and with proper care will comfortably last 20,000 hours


Efficiency


The reflectors in Victory dryers have been carefully designed to maximise efficiency and evenly distribute heat over the widest possible target.


A unique feature of the Victory system is that each cassette can be profiled to the curves of the target. The Heatlight system thus delivers incredibly efficient heating with the best possible paint finish.


For the ultimate flexibility and efficiency, the VLPV30 has two cassettes that can be independently rotated to achieve many different drying configurations.


Fit for the job: XL for larger vehicles


Modern vehicles, particularly SUVs, are increasingly tall. The Heatlight range therefore includes ‘XL’ versions which have extended reach and height.


Serviceability


Victory Heatlight dryers have been designed with the user in mind. They are very robust and durable, and all critical parts such as lamps and reflectors are easy to access for cleaning and replacement. All parts are in stocked in the UK.


  • Tried and tested over years and 1000s of installations
  • Designed and engineered in the UK with longevity in mind
  • Manufactured from top quality steel and aluminium
  • Full warranty and easy to access spares
  • Low glare lamps for eye safety in the workplace
  • Lockable rear wheel castors
  • Wide wheels to roll over gratings
  • Individually switched cassettes giving great drying flexibility
  • Horizontal or vertical cassette operation
  • Long lamp life of up to 20,000 hours
  • Locking gas strut to fix arm height
  • Reduced energy consumption; no fans or filter changes

Full Control & Flexibility


Heatlight systems are highly flexible and users can choose a configuration to exactly suit their requirement. There are single phase and 3 phase options, and each has a choice of control options

Control Options

Standard controls


  • 99 minute electronic programmable timer on both flash & bake settings
  • Temperature settable on both flash & bake cycle
  • 3 pre-set memory functions. Temperature display of time & setting of both flash & bake cycles


Standard controls + Distance / temperature sensors


  • Temperature settable on both flash & bake cycle
  • Optical electronic digital feedback loop adjusts heat automatically during cycle
  • Digital distance readout with safety cut out if unit is moved too close


Victory Lighting VLPV30 Large Paint Dryer Dimensions & Coverage

Technical Data

VLP30 VLP30SL VLPV30 VLP45 VLP60
Wattage (W) 3000 3000 3000 4500 6000
Area of cover (mm) 800x1000 800x1000 Variable 1250x1000 2000x1000
Minimum operating distance (mm) 500 500 500 500 500
Single phase current (A) 12.5 12.5 12.5 18.75 25
3 phase current / phase (A) 4.25 4.25 4.25 6.25 8.3

Supply voltage for all the above models 200 - 240V 50/60HZ
