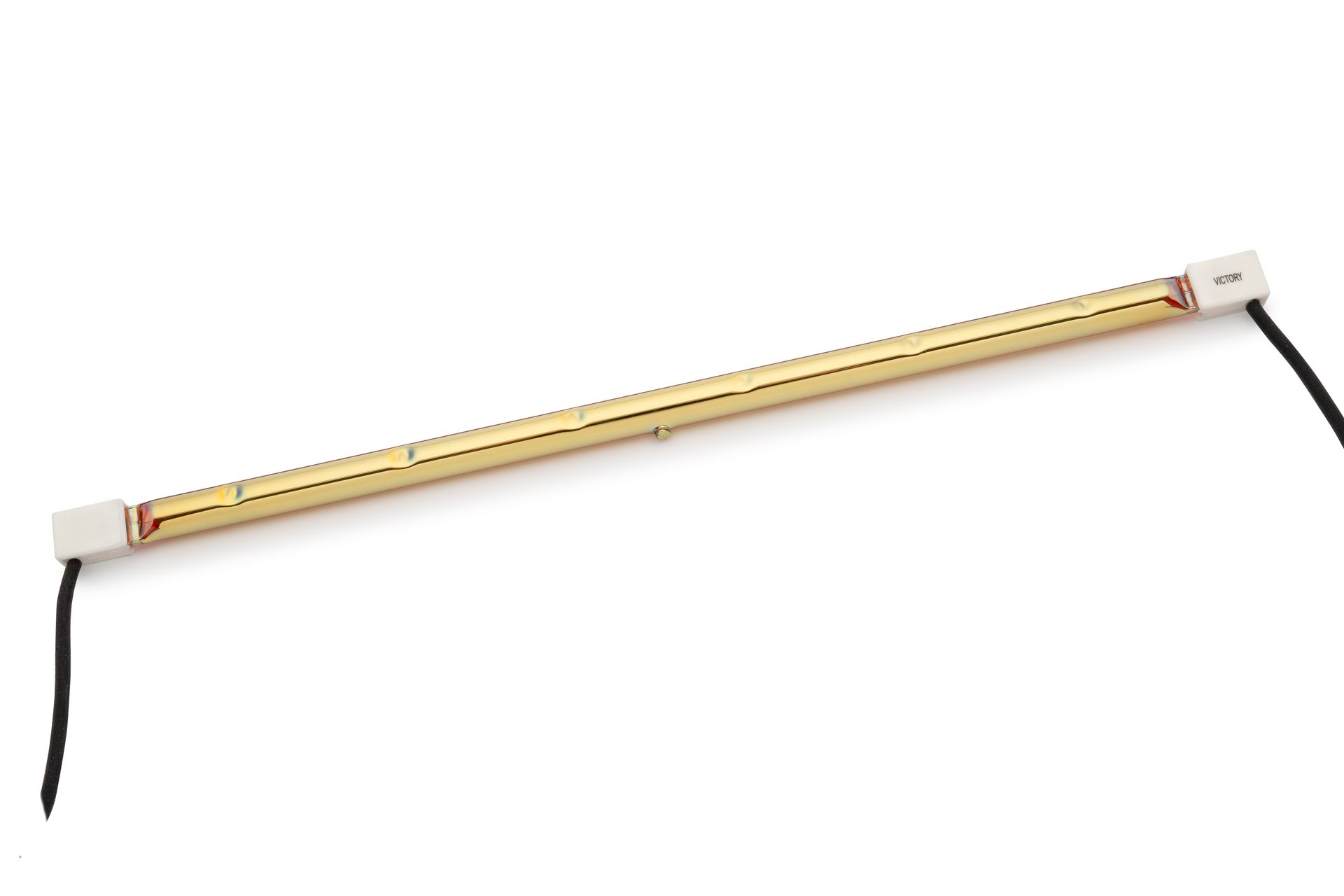

Infrared Gold Dichroic Anti-Glare Lamps
Victory’s Gold IR lamps have excellent glare reduction thanks to a special method of vacuum deposition developed by Victory which is used to deposit the gold coating. Victory’s innovation has enabled tubular surfaces, previously unsuitable for coating, to have a glare-reducing coating.
The process is also suitable for ruby lamps in instances where they might be considered ‘too red’, or simply as an upgrade from less effective dip-coated glare reduction lamps.
- The thickness of each film that makes up the multi-layer coating is controlled much more tightly than is possible with competitive dip-coating processes
- Colour is constant over the entire length, and from one batch to the next
- The occurrence of pinholes in the new coating is reduced
- Stability of the coating over lamp life is enhanced.
Another important benefit is flexibility to tailor the transmission to suit different applications- modifications in spectral output, colour of the transmitted light, and amount of visible light are all brought within our control.
| Code | Watts (W) | Volts (V) | Length (mm) | Cap | |
|---|---|---|---|---|---|
| 64121070 | 1000 | 120 | 353 | SK15 | GOLD |
| 64241372 | 1300 | 240 | 254 | R7s | GOLD |
| 64241571 | 1500 | 240 | 353 | SK15 | GOLD |
| 64242070 | 2000 | 240 | 353 | SK15 | GOLD |
| 6424157F | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424157G | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424157H | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424207C | 2000 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424207D | 2000 | 240 | 353 | SK15 | LOW GLARE GOLD |
