VLFS-3 WiFi Spur Timer Switch


VLFS-3 Victory's range of indoor & Outdoor WiFi Enabled Fused Spurs. WiFi enabled control for all manner of electrical applications connected to Victory's VLFS-3 13A Fused Spur Time switch.

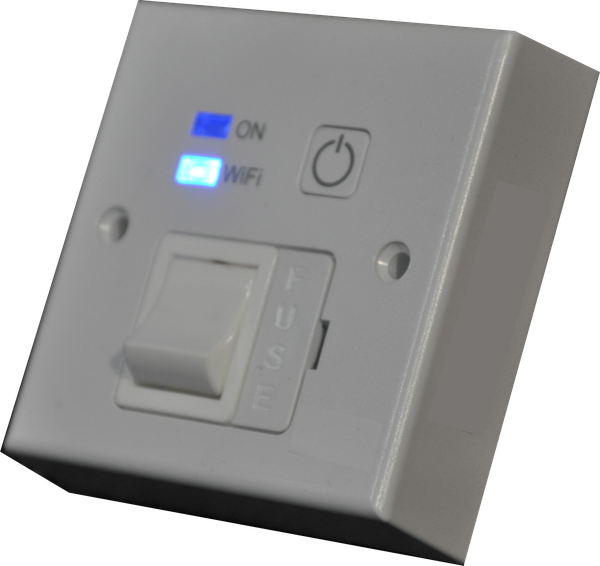

Victory Lighting VLFS-3 WiFi Spur Timer Switch

Ideal for switching lighting and electrical heaters with a Weathershield IP66 version VLFS-3IP for outdoor uses.

Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are.

Total 13A 3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.

App Features

  • Available for Android & Apple IOS only
  • Works with WiFi & 4g
  • Can reduce running costs if unwanted programmes are cancelled
  • Supports multiple devices
  • Supports multiple users
  • Auto mode, with permanent ON and permanent OFF are holiday modes
  • Optional 1 & 2 hour boost


  • Advance function
  • Supports additional programme sets, for half terms, holidays and seasonal programmes
  • 6 ON/OFF periods, with daily repeats
  • Positive ON/OFF status, with colour coded display
  • Graphic representation and summary of output
  • Automatic summer/winter changeover
  • Ideal for industrial, commercial and home installations

Technical Ratings

  • Operating voltage 230V 50hz
  • 13A rated suitable for 3kW
  • Immersion heaters
  • 5A inductive load
  • 1000W tungsten
  • 500W LED
  • 100W CFL
  • 500W Fluorescent
  • Manual override
  • Replaceable 13 Amp BS1362 fuse
  • Fits standard 25mm deep single wall box
  • Direct retrofit for BS1363 fused connection unit
  • IP66 Weathersafe rating -VLFS-3IP
  • Double pole isolation switch
  • Operating temperature 0-40 Degrees C

Indoor & Outdoor Versions



VLFS-3 For indoor use only


VLFS-3IP Suitable for outdoor use

Using The Smart Phone App


Click on the link below for a video showing how to use the smartphone app for the VLFS-3

https://youtu.be/PJz_n_HVkXg
