VLMST14 14kW Industrial Timer



A 14kW Infrared Timer for use with the Victory Modular Heat Tech Units or other Industrial heat output applications.


Victory Lighting VLMST14 Industrial Timer

Controlled, Efficient Heating

  • For use in indoor applications
  • Powder coated cast aluminium casing
  • IP20 rated
  • Simple activation button for repeat operations
  • Multi function timer
  • 3-Phase with Max. current rating of 36A
  • Easy installation
  • Provides opportunity for energy saving
Voltage 380-415V 3-Phase
Maximum Wattage 14000W
IR Rating IP20
Timing Ranges
Full Scale 12 0.02 to 1.2s
0.20 to 12s
(pre-set to) 0.20 to 12 min
2 to 120 min
0.20 to 12h
2 to 120h
Full Scale 30 0.05 to 3s
0.5 to 30s
5 to 300s
0.5 to 30 mins
5 to 300 mins
0.5 to 30 h
5 to 300 h

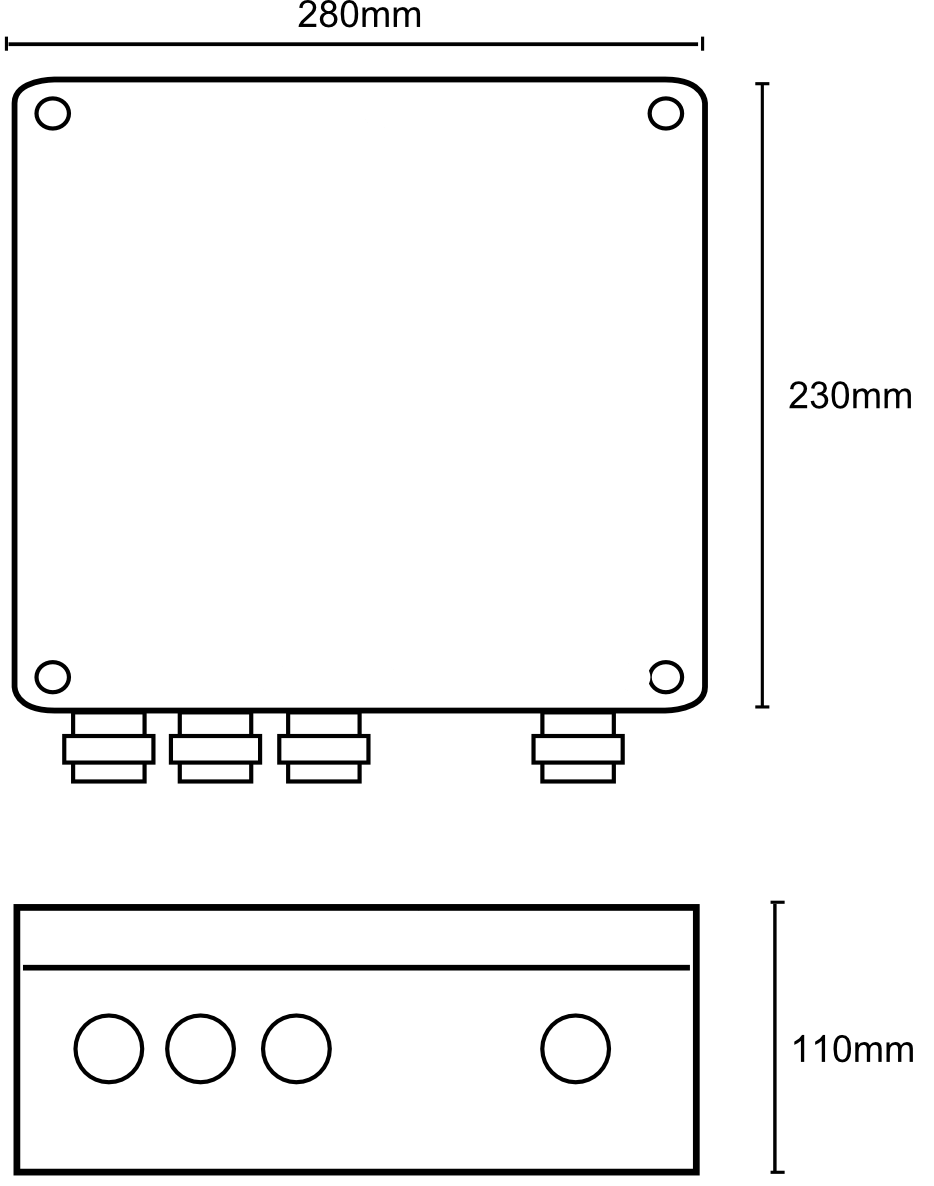

Victory Lighting VLMST14 Controller

Applications


  • Industrial process operations
  • Warehouse heating
  • Factory heating
